Laser Cutting Machine

Call for pricing

| Be the first to review this product

It is specially designed for the ventilation industry.

Overview
Video
Specifications
Reviews

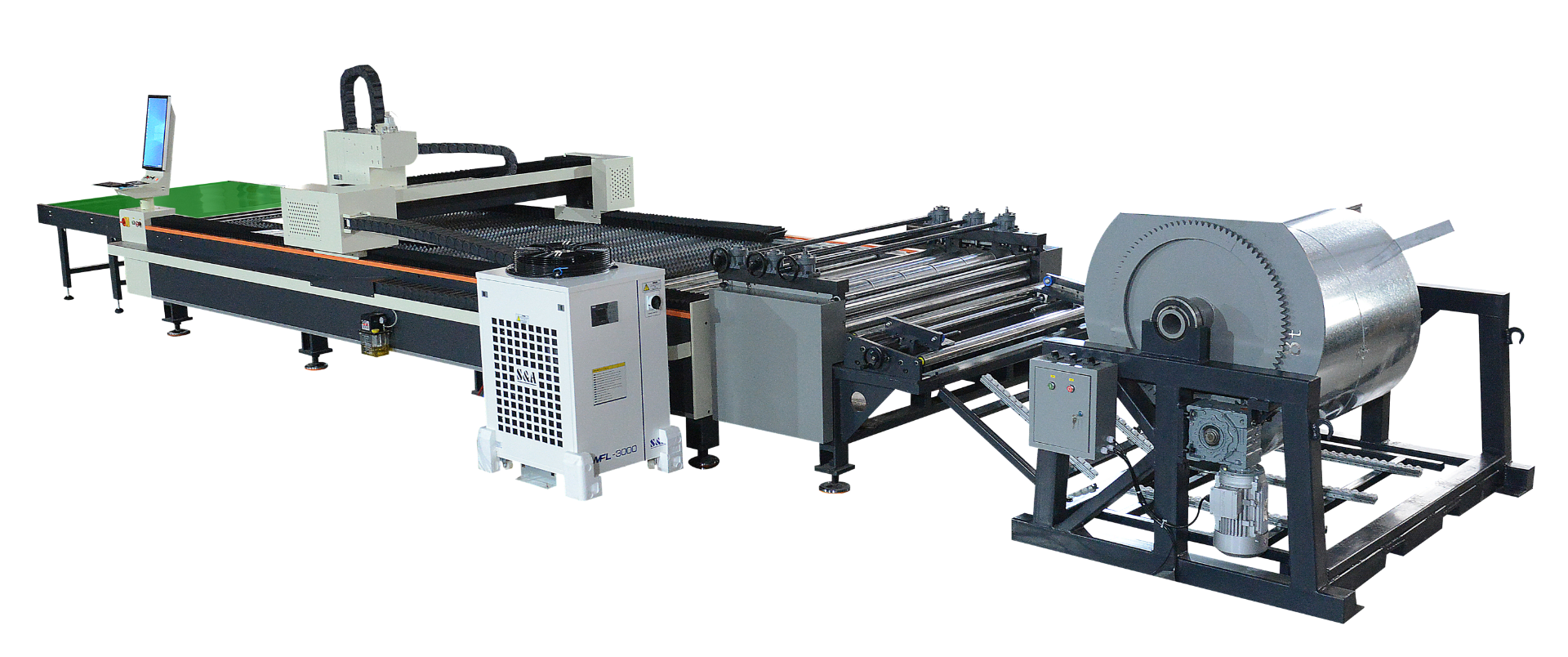

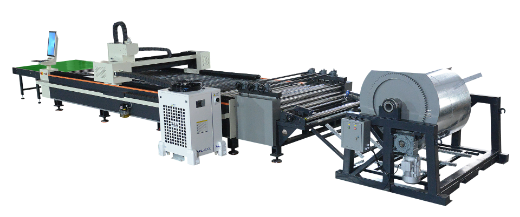

Designed to produce reducers, elbows and all other special channels, this machine operates at high speed using laser technology. Additionally, all drawings in dxf format can be cut. Cylinder group that gives a pattern to the sheet metal, motorized uncoiler, table that carries the sheet automatically..

Products specifications

Attribute name

Attribute value

Technical Table

Model	LCM- 1500x4000-R
Sheet Metal Processing Table	1500x4000mm
Motorized Uncoiler Capacity	7000kg
Design	V Pattern, Z pattern, Trapezoidal pattern
Machine Line Dimensions	16,8m x 2,4m
Laser Power	1.5kw (2kw,3kw Optional)
Drawing Program	All drawings in dxf format, compatible with CamDuct
acceleration	0,5G
Max Working Speed	50mt/min
Tolerance	± 0.03mm

Products specifications

Attribute name

Attribute value

Technical Table

Model	LCM- 1500x4000-R
Sheet Metal Processing Table	1500x4000mm
Motorized Uncoiler Capacity	7000kg
Design	V Pattern, Z pattern, Trapezoidal pattern
Machine Line Dimensions	16,8m x 2,4m
Laser Power	1.5kw (2kw,3kw Optional)
Drawing Program	All drawings in dxf format, compatible with CamDuct
acceleration	0,5G
Max Working Speed	50mt/min
Tolerance	± 0.03mm
