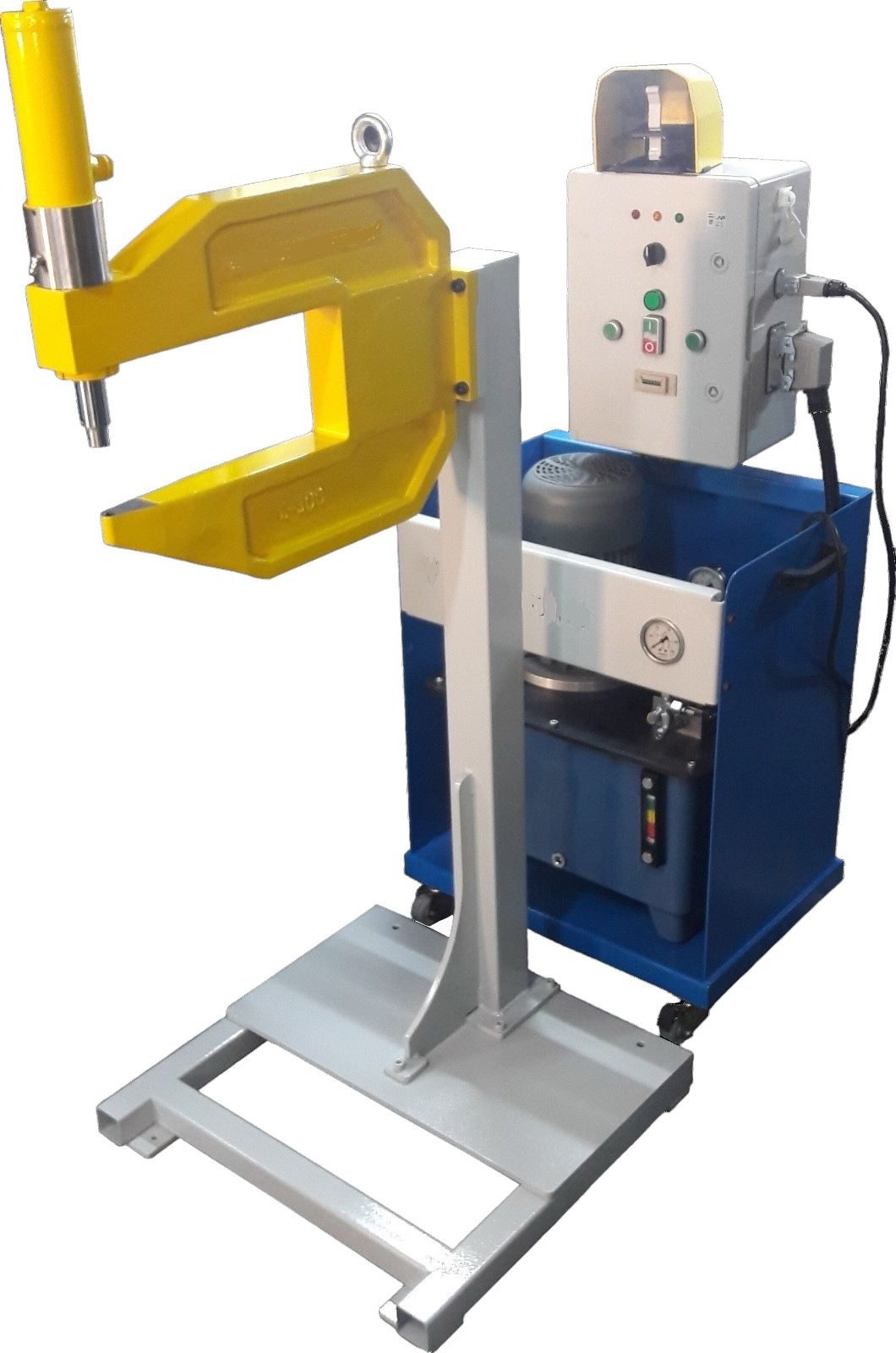

Hydrolic Clinching Machine C400

₺0,00

| Be the first to review this product

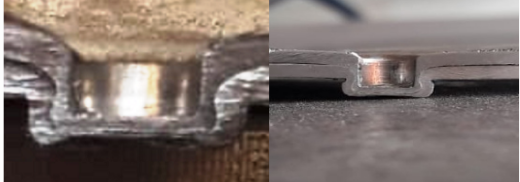

It joins metals by compressing them under pressure with special molds, without using any welding or rivets.

Manufacturer: Sonko

SKU: C400

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Overview
Video
Specifications
Reviews

As an alternative to joining by welding, there is no burning process in the material and it does not cause rust. Automobile, white goods, Hvac etc. It is used extensively in industries. It performs the crushing and joining of materials up to a total thickness of 3 mm.

Products specifications

Attribute name

Attribute value

Technical Table

Model No	C-400
Power Consumption	2.2 kw 380 V
Hydrolic Pressure	Max 210 Bar
Force Output	0-4 Ton / 0-40 KN
Working Length	400 mm
Throat Depth	330 mm
Min. Metarial Thickness	(2x) (2x) 0.012” / 0.30 mm
Max. Material Thickness	(2x) 0.08” / 1.5mm
Hydrolic Oil Type	Oil No 47
Hydrolic Unit Dimension	450 mm x 350 mm x 780 mm

Products specifications

Attribute name

Attribute value

Technical Table

Model No	C-400
Power Consumption	2.2 kw 380 V
Hydrolic Pressure	Max 210 Bar
Force Output	0-4 Ton / 0-40 KN
Working Length	400 mm
Throat Depth	330 mm
Min. Metarial Thickness	(2x) (2x) 0.012” / 0.30 mm
Max. Material Thickness	(2x) 0.08” / 1.5mm
Hydrolic Oil Type	Oil No 47
Hydrolic Unit Dimension	450 mm x 350 mm x 780 mm
