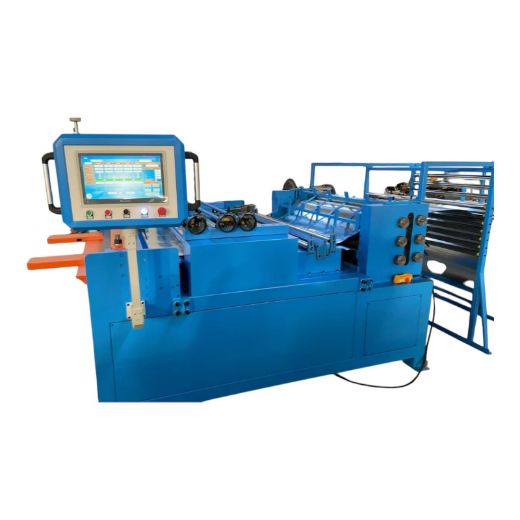

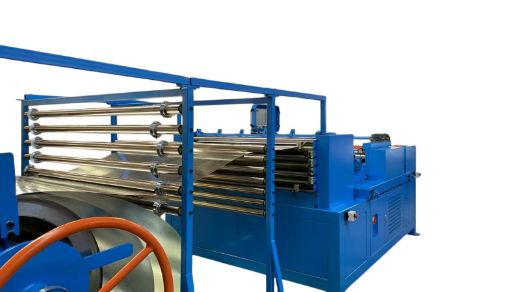

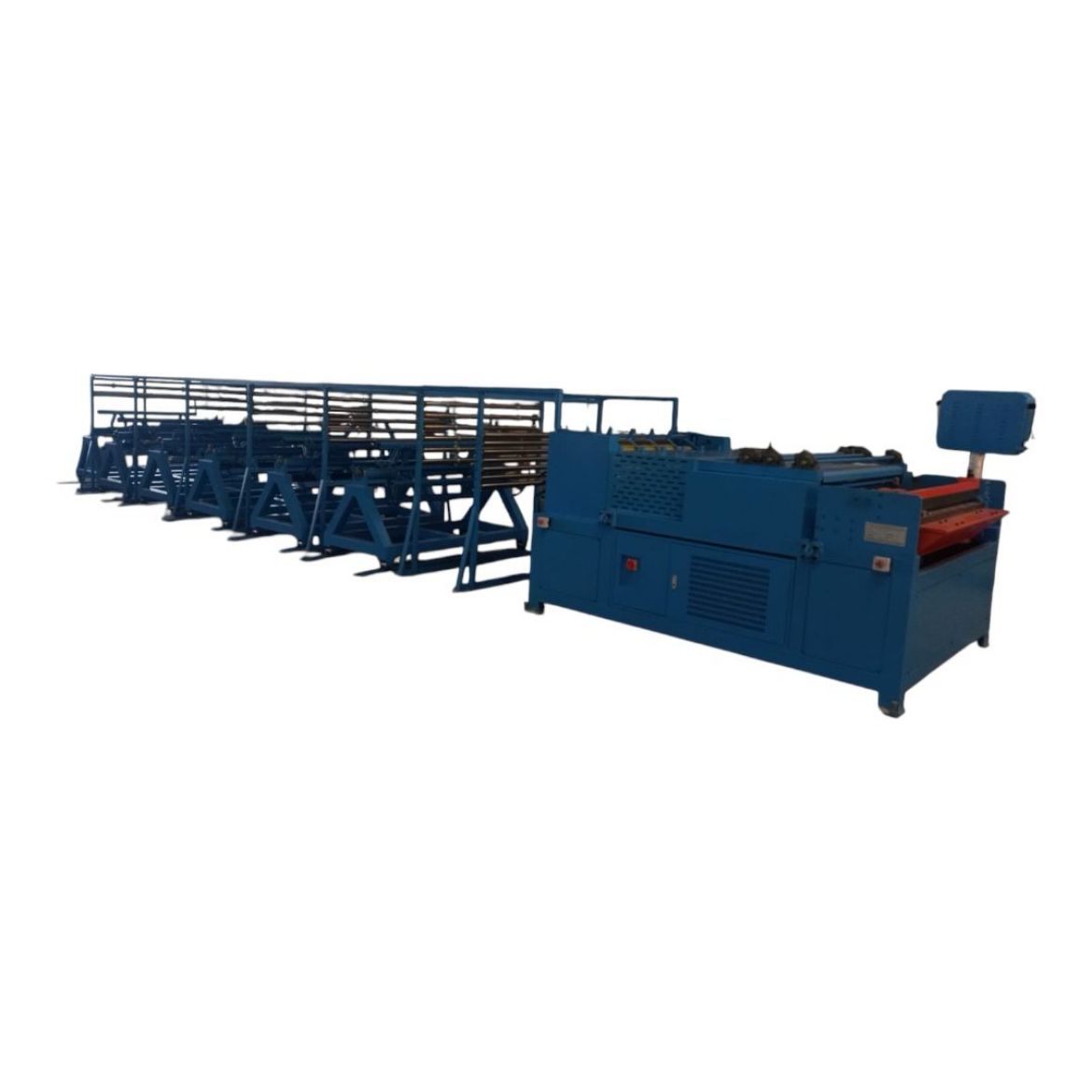

Auto Duct Former

Picture of Auto Duct Former

Picture of Auto Duct Former

Picture of Auto Duct Former

Picture of Auto Duct Former

Picture of Auto Duct Former

Auto Duct Former

Call for pricing

| Be the first to review this product

Square duct machine with punching units

Overview
Specifications
Reviews

Square ducts are produced with knock-on flanges or self-flanges for use in the ventilation industry.
It allows you to prepare.

Features:

Servo-motor
Selective unit for 6 inputs, Double pattern

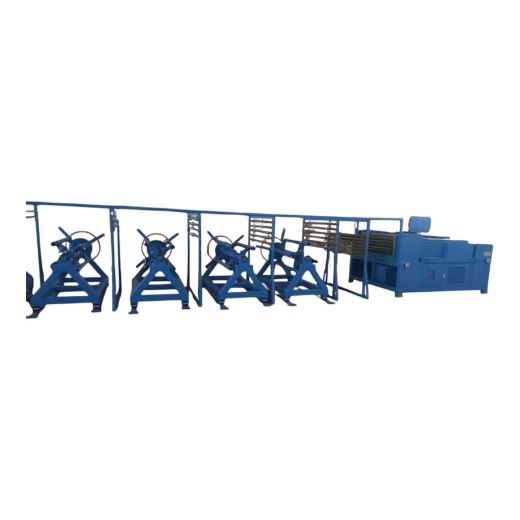

3 7-ton uncoilers
Movable HMI display unit

Products specifications

Attribute name

Attribute value

Technical Table

MODEL	ADL-P3-1500	ADL-C3-1500	ADL-P3-1300	ADL-C3-1300
POWER	11 KW	11 KW	11 KW	11 KW
DIMENSION	2mt x 7.5mt	2mt x 7mt	1,75mt x 7,5mt	1,75mt x 7mt
SHEET THICKNESS	Galvanized 0.5mm-1.2mm Stainless 0.5mm-1.0mm	Galvanized 0.5mm-1.2mm Stainless 0.5mm-1.0mm	Galvanized 0.5mm-1.2mm Stainless 0.5mm-1.0mm	Galvanized 0.5mm-1.2mm Stainless 0.5mm-1.0mm
SHEET WIDTH	1500mm	1500mm	1250mm	1250mm
WORKING SPEED	15m/min	15m/min	15m/min	15m/min
LOCK TYPES	PTS, Nulock, Snaplock	PTS, Nulock, Snaplock	PTS, Nulock, Snaplock	PTS, Nulock, Snaplock
WORKING SYSTEM	HYDRAULIC	HYDRAULIC	HYDRAULIC	HYDRAULIC
PATTERN	Z PATTERN +TRAPEZE PATTERN	Z PATTERN +TRAPEZE PATTERN	Z PATTERN +TRAPEZE PATTERN	Z PATTERN +TRAPEZE PATTERN

Options

Optional models are available depending on sheet width and pattern selection.

Square ducts are produced with knock-on flanges or self-flanges for use in the ventilation industry.
It allows you to prepare.

Features:

Servo-motor
Selective unit for 6 inputs, Double pattern
3 7-ton uncoilers
Movable HMI display unit

Products specifications

Attribute name

Attribute value

Technical Table

MODEL	ADL-P3-1500	ADL-C3-1500	ADL-P3-1300	ADL-C3-1300
POWER	11 KW	11 KW	11 KW	11 KW
DIMENSION	2mt x 7.5mt	2mt x 7mt	1,75mt x 7,5mt	1,75mt x 7mt
SHEET THICKNESS	Galvanized 0.5mm-1.2mm Stainless 0.5mm-1.0mm	Galvanized 0.5mm-1.2mm Stainless 0.5mm-1.0mm	Galvanized 0.5mm-1.2mm Stainless 0.5mm-1.0mm	Galvanized 0.5mm-1.2mm Stainless 0.5mm-1.0mm
SHEET WIDTH	1500mm	1500mm	1250mm	1250mm
WORKING SPEED	15m/min	15m/min	15m/min	15m/min
LOCK TYPES	PTS, Nulock, Snaplock	PTS, Nulock, Snaplock	PTS, Nulock, Snaplock	PTS, Nulock, Snaplock
WORKING SYSTEM	HYDRAULIC	HYDRAULIC	HYDRAULIC	HYDRAULIC
PATTERN	Z PATTERN +TRAPEZE PATTERN	Z PATTERN +TRAPEZE PATTERN	Z PATTERN +TRAPEZE PATTERN	Z PATTERN +TRAPEZE PATTERN

Options

Optional models are available depending on sheet width and pattern selection.
