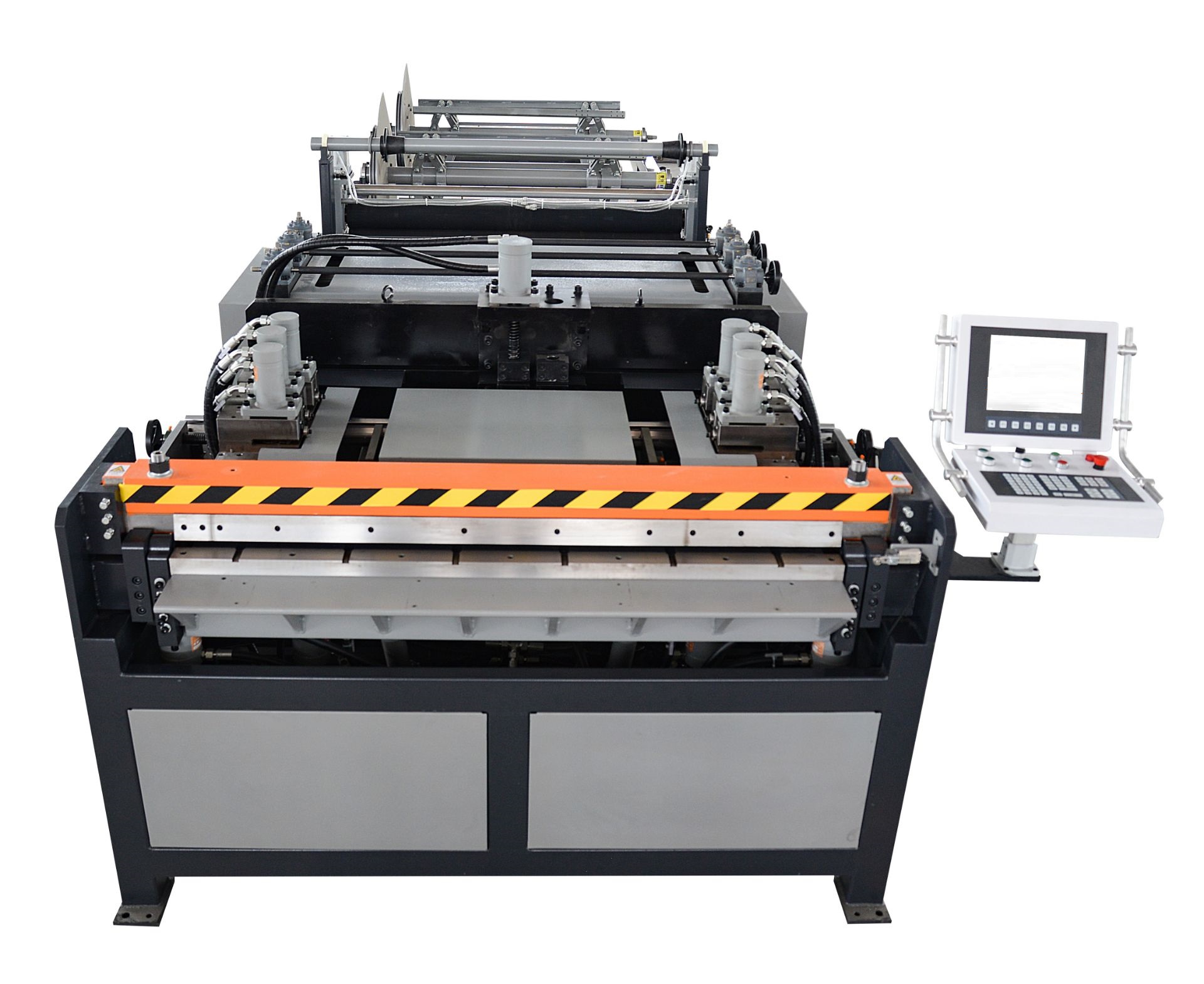

Auto Duct Former

Call for pricing

It s used to manufacturing ducts for ventilation industry. It has multi uncoilers and coil feeders.

Machine is designed to make cut-to-length, straightening, beding, bending and cutting on desired length with the user friendly HMI control.

Able to make ducts for desired sizes with slip-on flange or integrated flange system. Also able to make cut-to-length.

Optional:

TDF/TDC ,S&drive, PDF/PDF3 notching

Tie Rod 1/2/3 notching

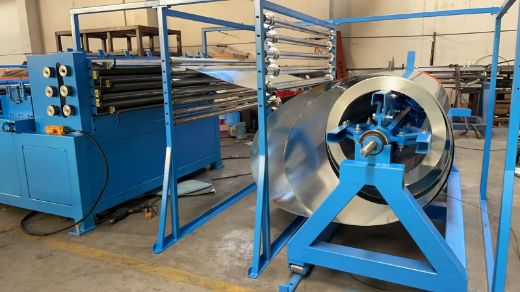

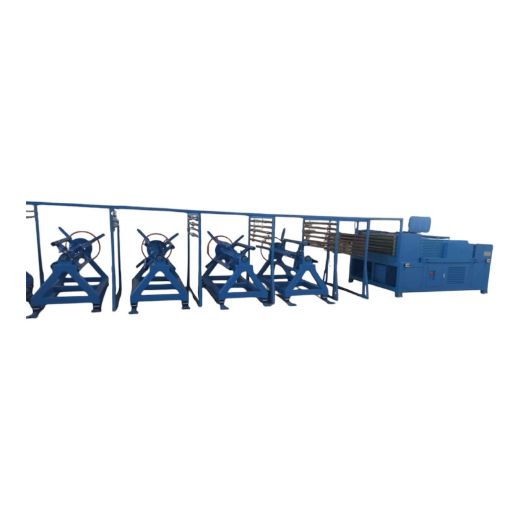

Single uncoiler feeder up to 6 uncoilers feeding system

Motorised or manual-break uncoilers

Products specifications

Attribute name

Attribute value

Technical Table

MODEL	ADL-P3-1500	ADL-C3-1500	ADL-P3-1300	ADL-C3-1300
POWER	11 KW	11 KW	11 KW	11 KW
DIMENSION	2mt x 7.5mt	2mt x 7mt	1,75mt x 7,5mt	1,75mt x 7mt
SHEET THICKNESS	Galvanized 0.5mm-1.2mm Stainless 0.5mm-1.0mm	Galvanized 0.5mm-1.2mm Stainless 0.5mm-1.0mm	Galvanized 0.5mm-1.2mm Stainless 0.5mm-1.0mm	Galvanized 0.5mm-1.2mm Stainless 0.5mm-1.0mm
SHEET WIDTH	1500mm	1500mm	1250mm	1250mm
WORKING SPEED	15m/min	15m/min	15m/min	15m/min
LOCK TYPES	PTS, Nulock, Snaplock	PTS, Nulock, Snaplock	PTS, Nulock, Snaplock	PTS, Nulock, Snaplock
WORKING SYSTEM	HYDRAULIC	HYDRAULIC	HYDRAULIC	HYDRAULIC
PATTERN	Z PATTERN +TRAPEZE PATTERN	Z PATTERN +TRAPEZE PATTERN	Z PATTERN +TRAPEZE PATTERN	Z PATTERN +TRAPEZE PATTERN

Options

Optional models are available depending on sheet width and pattern selection.
